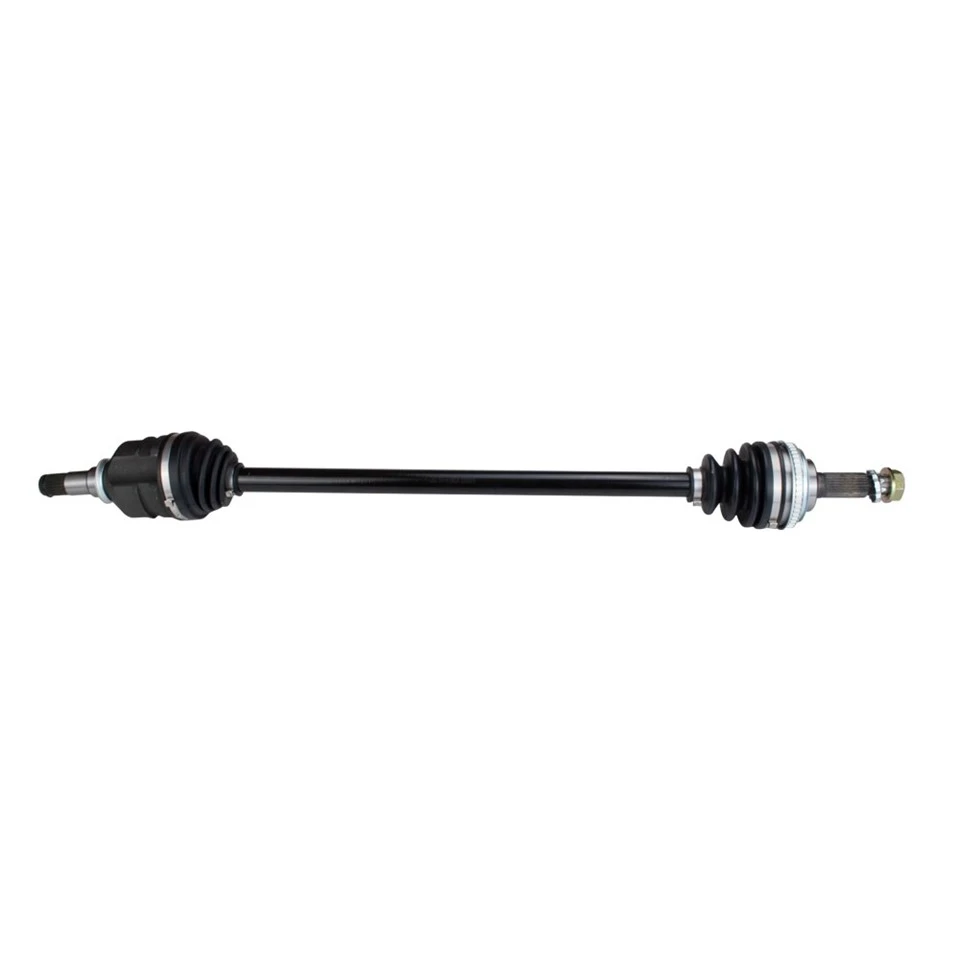

Product Overview

This heavy-duty CV axle assembly is engineered as an aftermarket replacement for Toyota Corolla drivetrain applications. It matches the 26-tooth outboard and 23-tooth inboard spline configuration with a 920 mm compressed length.

Technical Specifications

Parameter	Specification
Application	Toyota Corolla
OE Cross-Reference	43410-20450 / 43410-20451 / 43410-20441 / 43410-20440 / 43410-02040
Compressed Length	920 mm
Outboard Spline	26 Teeth
Inboard Spline	23 Teeth

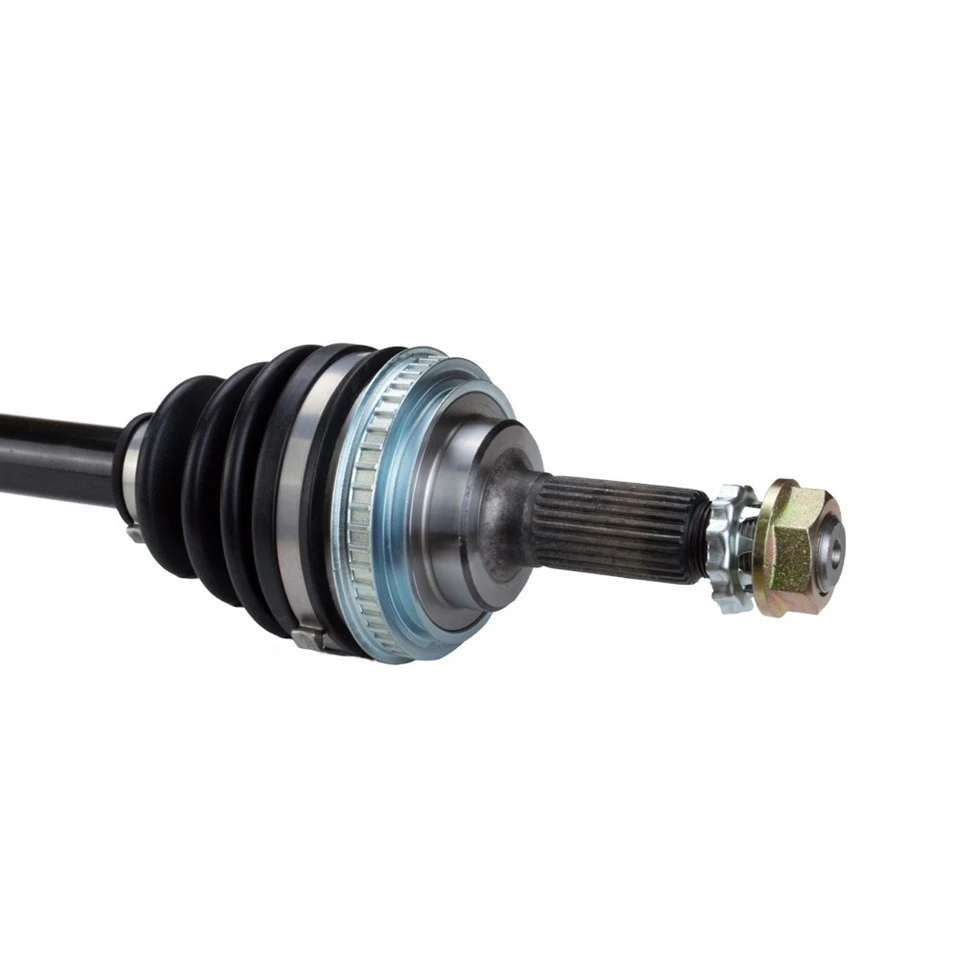

Outboard Joint Diameter	82 mm

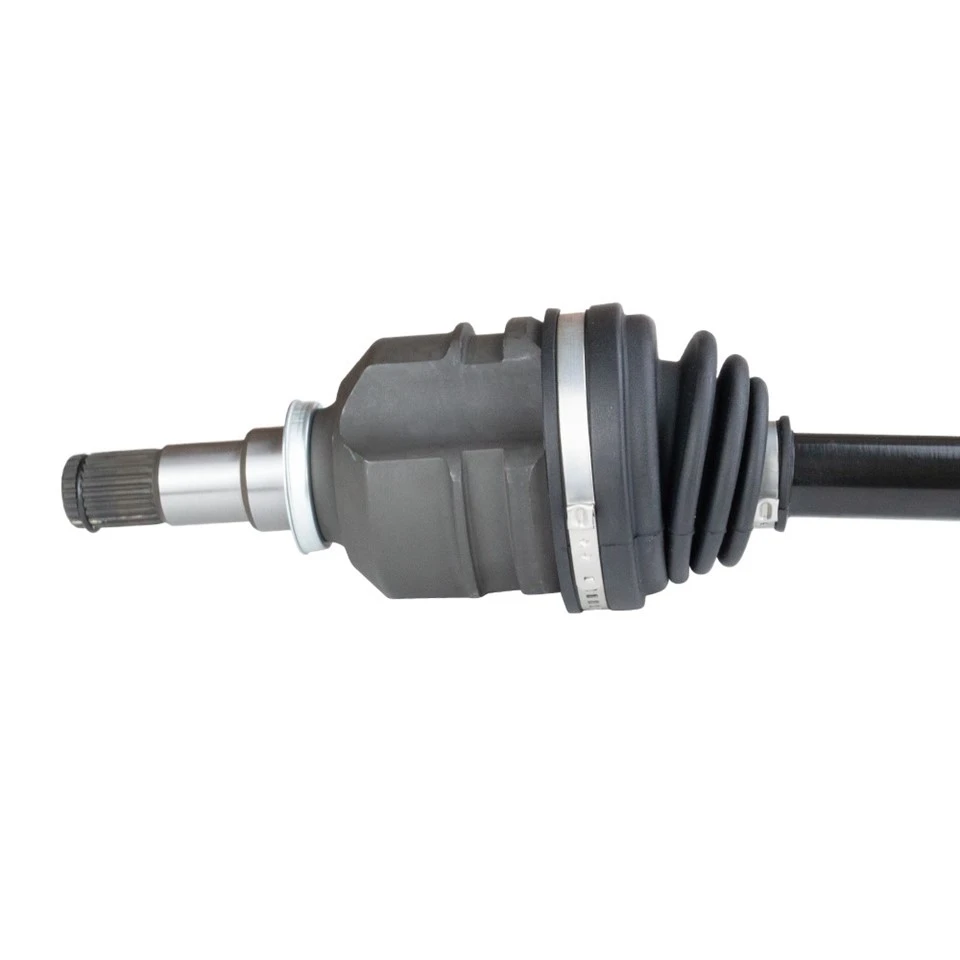

Inboard Joint Diameter	90 mm
Shaft Material	CF53 / 40Cr Alloy Steel
Boot Material	CR Neoprene Rubber
Grease	High-Temperature MoS₂ Lithium Grease
Hardware	1 × Standard Hex Axle Nut

Fitment & Ordering Check

Before placing an order, buyers should confirm the following against the original axle or vehicle application:

OE part number
Outboard and inboard spline count
Compressed axle length
Joint diameter
Vehicle model and application

For applications not covered by the listed OE references, an original sample or complete dimensional information can be used for fitment verification.

Pre-Shipment Inspection

Dimensions & Spline: Compressed length, joint diameters, and outboard/inboard spline tooth counts are checked against the specified part number.

Joint Assembly: CV joint movement, boot position, clamp installation and grease sealing are checked to confirm correct assembly.

Dynamic Balance: The completed axle assembly is checked for excessive imbalance before packing to support stable operation at operating speed.

Packaging & Identification: Part number, quantity, protective caps, VCI film and carton condition are checked against the shipping order before loading.

Packaging & Supply

Item	Standard Supply
MOQ	100 pcs per part number
Lead Time	25–30 days after order confirmation and deposit
Individual Packaging	VCI anti-rust film + corrugated carton
Carton Size	Approx. 960 × 150 × 150 mm
Gross Weight	Approx. 7.5–9.0 kg per unit
Export Pallet	ISPM 15-compliant wooden pallet
Mixed Models	Available for consolidated wholesale shipments

Warranty & After-Sales Support

Warranty: 12 months or 30,000 km against manufacturing defects under normal operating conditions.

Fitment Support: OE number and dimensional information can be checked before order confirmation.

Installation Information: Technical installation instructions can be supplied for applicable axle assemblies.

FAQ

Q: Can I order this CV axle for aftermarket resale?

A: Yes. The axle assembly is supplied as an aftermarket replacement product for wholesale distribution, repair supply and automotive parts resale.

Q: Can different Toyota Corolla axle part numbers be combined in one order?

A: Yes. Different applicable part numbers can be consolidated for wholesale orders, subject to the required quantities and production schedule for each part number.

Q: Can I request a sample before placing a production order?

A: Yes. Samples are available for product evaluation and internal approval before a bulk purchase.

Q: Can the product be supplied with our own part number or packaging?

A: Private-label marking and customized packaging can be arranged for qualified wholesale orders, including part numbers, labels and barcode information.

Q: What documents can be provided with an export order?

A: Standard commercial and shipping documents can be provided according to the order and destination requirements. Product-specific inspection or material documentation can be discussed before order confirmation.
