Cv Joint 43047-02030
video

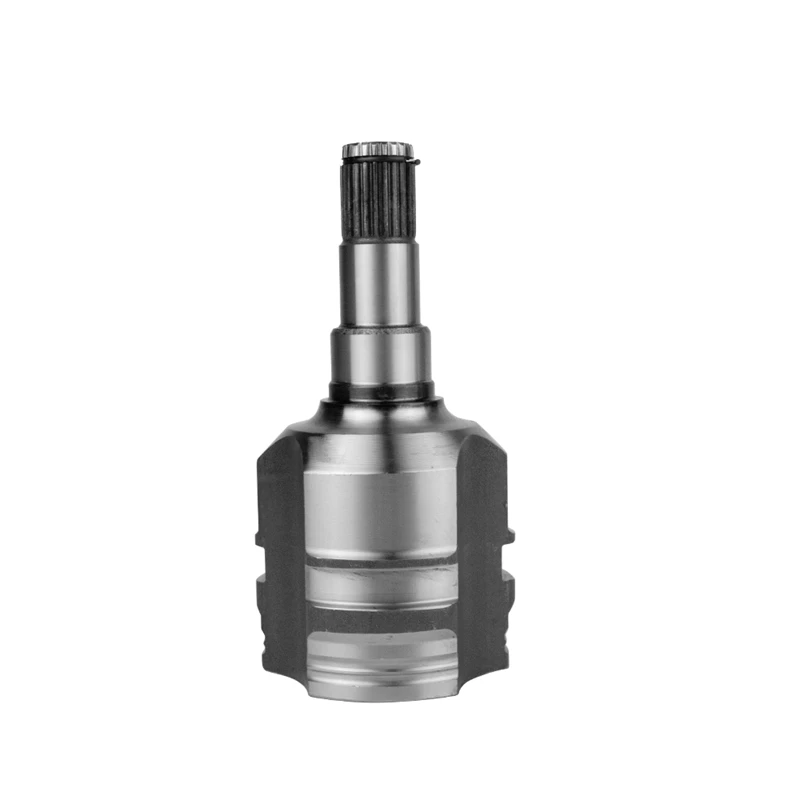

Cv Joint 43047-02030

Cv Joint 43047-02030

The CV Joint 43047-02030 is a premium, precision-forged carbon steel inner joint designed for heavy-duty torque transmission and smooth steering performance, engineered specifically for global automotive aftermarket wholesalers and importers.
Send Inquiry


Product Overview



The CV Joint 43047-02030 is a premium, precision-forged carbon steel inner joint designed for heavy-duty torque transmission and smooth steering performance, engineered specifically for global automotive aftermarket wholesalers and importers.





Technical Specifications



Parameter

Specification

OEM Reference

43047-02030

Application

Toyota Corolla / Matrix (Verify exact models via catalog)

Material

Premium 55# Carbon Steel

Heat Treatment

Induction Hardened (58-62 HRC)

Case Depth

2.5mm - 3.5mm

Track Finish

CNC Ground ( Ra ≤ 0.4 μm)

Warranty

12 Months





Product Features



Manufactured through precision hot forging to maintain structural stability under continuous high-torque operating conditions.

Precision CNC-machined raceways help reduce friction variation and support smoother drivetrain operation.

Induction-hardened contact surfaces achieve 58–62 HRC to help reduce spline and raceway wear during long-term use.

Every production batch undergoes dynamic balancing inspection to support stable high-speed performance.

Finished with anti-rust surface protection to help reduce moisture and corrosion risks during shipping and storage.





Vehicle Fitment Validation Support



OEM cross-reference verification and vehicle fitment validation are available before order confirmation to help reduce installation mismatch risks.

Our engineering team can provide

OEM interchange verification

Spline specification confirmation

Dimensional validation

Technical drawings for approval

2D / 3D engineering support





OEM & Custom Manufacturing Support



We support OEM and private label cooperation for global aftermarket distributors and automotive parts importers.

Available customization options include

Laser logo marking

Customized packaging design

Technical drawing development

Boot material adjustment

Grease specification customization

Complete CV joint repair kit assembly

New sample development based on OEM reference or drawings



TO-3-50101



TO-3-50102



TO-3-50103



TO-3-50104



TO-3-50105





FAQ



Q: Does this CV joint fit both left and right sides?

A: No. This inner CV joint is designed specifically for the Front Left (Driver Side) position. Please confirm your vehicle model, transmission type, and OEM number before ordering.

Q: Are the dimensions and spline specifications identical to the OE part?

A: Yes. All critical dimensions, spline counts, seal diameters, and installation interfaces are manufactured to OE 43047-02030 standards for direct replacement without modification.

Q: What material is used for the rubber boot? Can it handle extreme temperatures?

A: The boot is manufactured from high-grade Neoprene (CR) rubber with excellent resistance to heat, ozone, grease, and aging. It maintains flexibility from -40°C to 120°C to reduce the risk of cracking and grease leakage in harsh environments.

Q: Can you provide technical drawings and spline data for validation?

A: Yes. We can provide detailed technical specifications, spline data, and 2D/3D drawings upon request to support engineering verification and OEM cross-checking.
